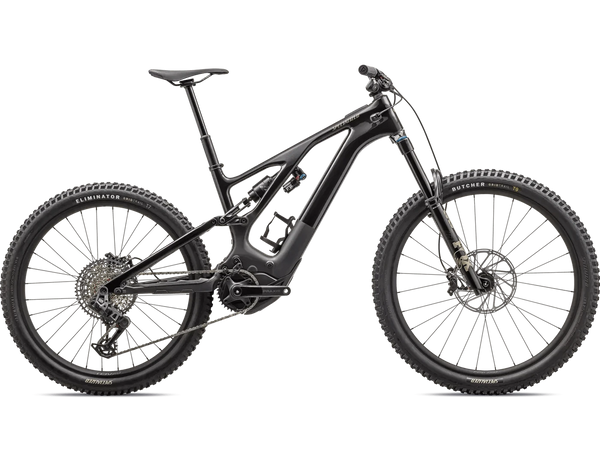

Specialized Turbo Levo Expert T-Type

The all-new Levo delivers the unbelievable power to ride more trails through an unequaled combination of ride quality, usable power, and ride anywhere range. It’s the distillation, application, and amplification of a 40-year obsession with creating the world’s best riding mountain bikes. Since its introduction, Levo has set the bar every other e-MTB aims for, and the new Levo raises that bar again.

It starts with our Turbo Full Power 2.2 motor and MasterMind Turbo Control Unit (TCU), which provide Levo with a smooth and seamless amplification of your efforts—4x you power that lets you choose where to ride, and when you want to do it. Levo also shatters limitations when it comes to range, amplifying your effort for up to five hours of trail time. Now you can ride farther, and explore more, than ever before. And the optimized chassis boasts 150mm of custom-tuned rear suspension and adjustable geometry that delivers a stable and natural ride like no other. Because at the end of the day, it’s the ride that matters. Believe it.

Here’re where the gloves come off—the Levo Expert brings it with SRAM’s new AXS GX Eagle Transmission 12-speed drivetrain, dialed-in FOX Performance Elite suspension, and a high-performing Roval Traverse wheelset.

• Levo’s fully integrated Turbo Full Power 2.2 motor, 700Wh battery, and advanced MasterMind Turbo Control Unit deliver category-leading 90 Nm of torque and 565 watts of power for up to five hours of ride time, empowering you to ride farther and faster than ever before.
• The MasterMind Turbo Control Unit is your information hub with customizable display fields, including the exact percentage of battery level, and it features our all-new MicroTune function to adjust power delivery in 10% increments, so you get exactly the support you need to experience precisely the ride you want.
• A dedicated mixed-wheel size design with a 27.5” wheel in the back and 29” up front delivers a nimble ride that carves circles around other full-power e-MTBs. A generous cockpit centers you on the bike, optimizing traction and corner control. The low bottom bracket, slack headtube angle and reduced fork offset keep things stable in the rough.
• Levo offers six distinct geometry settings, allowing you to easily dial-in its performance for any riding style andany terrain. Head tube angle can be adjusted between 63- and 65.5-degrees. Bottom bracket height can be fine-tuned up or down by 7mm.
• Levo’s 150mm of rear travel is supple on small bumps, devours square-edged hits without a twitch, eats massive G-outs for breakfast, yet still offers amazing pedal response and delivers your power to the ground with total efficiency.
• The Levo’s S-Sizing is based on what matters—rider size and style, not inseam. Six sizes, all with similar headtube lengths and standover, allow you to choose the size that best suits your individual style. Smaller S-Size numbers are going to be nimble and more flickable, while bigger S-Sizes deliver more stability and a roomier ride.

Specs

FRAMESET

Frame: FACT 11m full carbon, 29" front wheel, 27.5" rear wheel, full internal cable routing, 148mm spacing, fully sealed cartridge bearings, 150mm of travel, geo adjust head tube, geo adjust horst pivot

SUSPENSION

Fork: Fox 38 Performance Elite, Grip 2 damper, 29", 160mm travel, 44mm offset

Rear Shock: Fox Float X2 Performance Elite series, 210x55mm

COCKPIT

Saddle: Bridge Comp, Hollow Cr-mo rails, 155/143mm

Grips: Deity Grips

Stem: Alloy Trail Stem, 35mm bar bore

SeatPost: OneUp, Dropper Post-V2, MMX lever, 34.9 (S2/S3:150mm, S4: 180mm, S5/S6: 210mm)

Handlebars: Specialized Trail, 7050 alloy, 8-degree backsweep, 6-degree upsweep, 30mm rise, 800mm, 35mm clamp

BRAKES

Rear Brake: SRAM Code Silver Stealth, 4-piston caliper, hydraulic disc, 220mm rotor

Front Brake: SRAM Code Silver Stealth, 4-piston caliper, hydraulic disc, 220mm rotor

DRIVETRAIN

Crankset: Praxis Forged/Custom Offset/ISIS Spindle Interface, 160mm

Shift Levers: SRAM AXS POD Controller

Chain: SRAM GX Eagle Transmission Flattop Chain

Chainrings: New SL 1.2 spider, 104BCD w/SRAM 32t Transmission compatible alloy ring

Rear Derailleur: SRAM GX Eagle Transmission Derailleur

Cassette: SRAM GX Eagle Transmission Cassette, 12spd, 10-52t

WHEELS

Front Tyre: Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.6"

Rear Tyre: Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5x2.6"

Rear Wheel: Traverse 27.5

Front Wheel: Traverse 29

E-BIKE

Wiring Harness: Custom Specialized wiring harness

Charger: Custom charger, 42V4A w/ Rosenberger plug, 100-240V

Motor: Specialized 2.2 Custom Rx Trail Tuned Motor

Battery: Specialized M3-700, Integrated battery, 700Wh

UI/Remote: Specialized MasterMind TCU, percentage of remaining charge, 120 possible display configurations, MicroTune assist adjustment, ANT+/Bluetooth®, w/Handlebar remote

SWAT: SWAT CC steerer tube integrated tool with chain tool and link

WEIGHT: 23.04kg S4
