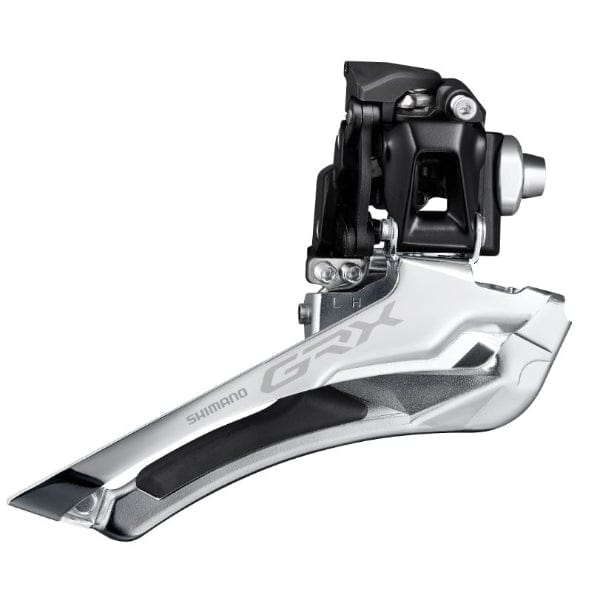

Shimano GRX FD-RX810 11-Speed Braze-On Front Derailleur


The Shimano GRX FD-RX810 front derailleur features a new shift construction for a more ergonomic performance curve and a more natural shifting feel. With its 17 tooth capacity it fits perfectly to the FC-RX810-2 crankset. A chainline 2.5 mm further out (compared to a conventional Shimano Road front derailleur) ensures more tyre clearance. The FD-RX810 front derailleur is easy to set up thanks to the integrated cable adjustment.

Series: GRX-R810
Application: Gravel, Cyclocross, City & Touring
Gearing: 2x (in combination w/ 11-speed)
Chainstay Angle: 61-66°
Chainline: 46 mm
Chainring Size (max.): 46-50 teeth
Capacity: 17-tooth
Cable Routing: down pull
Movement: down-swing
Attachment: braze-on
