OneUp Components EDC Top Cap

OneUp Components
Size Chart
$49.95
-
+

This is the Top cap required to run the EDC Tool in your steerer if it has been threaded for the tool. We can tap a thread in store at The Hub or you will need access the required tap. The alternative is to use the new EDC stem which no longer requires a thread to be cut.

The EDC Cap Kit includes the worlds lightest headset top cap (4.2g), and an EDC steerer plug with drain hole which keeps crud out of your steerer.

Top caps are compatible with all 1-1/8" aluminum steerer tubes.

The EDC steerer plug is required for EDC tool storage and is compatible with most aluminum tapered steerer tubes.

Check Fork Compatibility

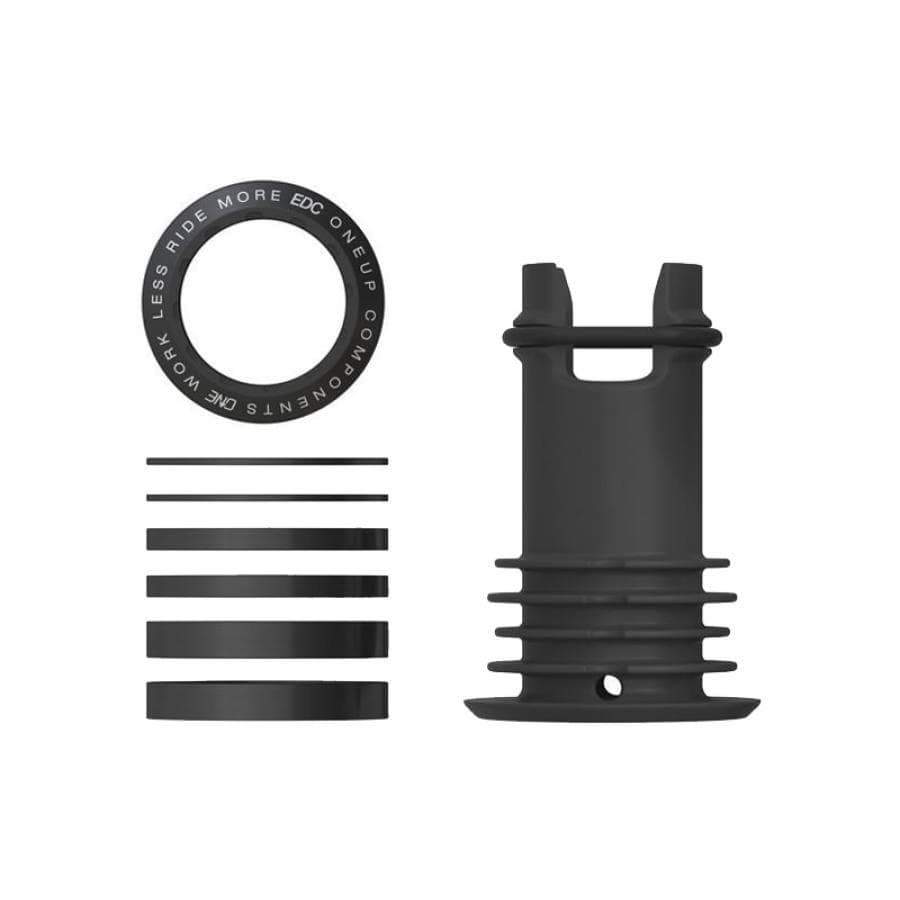

KIT INCLUDES

  • EDC TOP CAP
  • EDC steerer plug
  • 2x 1mm, 3mm, & 5mm Headset Spacers

INSTALL THE EDC TOP CAP

  1. You need a minimum of 5mm of headset spacer above the stem and your steerer tube should be 1-2mm below the top of this spacer.
  2. Apply a small amount of grease to your newly cut thread and screw in your new EDC top cap.
  3. The Top Cap interface uses a standard cassette lockring tool. You do not need to apply much torque as you are only preloading the bearings. (Your stem pinch bolts are what holds your fork in place). The EDC multitool contains a top cap tightening tool. So even when riding you always have the ability to tighten your headset if need be.
  4. Align your stem and tighten your stem bolts to the manufacturers recommended torque.
  5. The final step is to insert the plastic bung/plug into the bottom of your fork. Turn your 8mm hex sideways and use it to push the plug into the fork by pulling the 8mm towards your chest. This piece holds the bottom of the EDC Tool and stops it from rattling. It also keeps dirt out of your fork and has a small drain hole.
