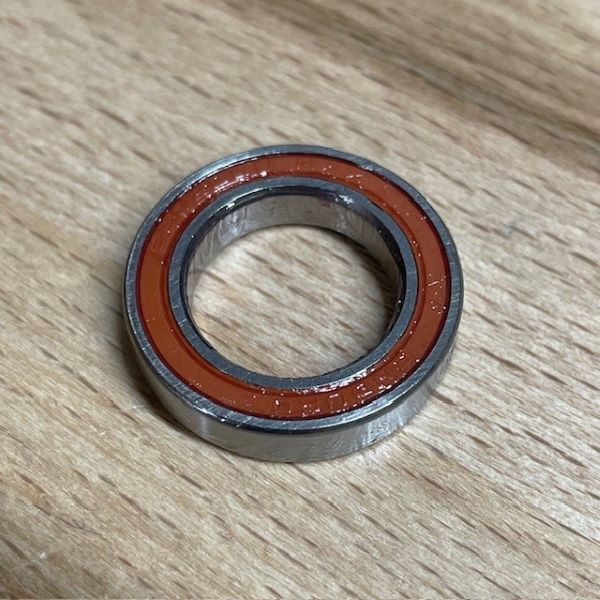

Enduro Radial MAX 6802 LLU - 15 x 24 x 5mm ABEC-3 radial suspension bearing
Internal Diametre:- 15mm
External Diametre:- 24mm
Width:- 5mm
Accurately measure the bearing's outside diameter, inside diameter and width. Then select the matching dimensions locate the bearing you need.
Check bicycle owner's manual or website for make, model, year, specification changes and bearing product information.
Commonly used in Specialized dual suspension bikes.
Enduro Bearings pioneered MAX type bearings over 20 years ago for bicycles to address the challenges associated with mountain bike pivots. MAX-type bearings provide 35-40% more load capacity than standard radial bearings by utilizing a special design where the maximum number of balls are inserted into the bearing, via a custom ground slot in the races. The additional balls, combined with deep race grooves in these bearings providing greater lateral support for the twisting and multi-directional forces associated with mountain bike pivots. This ABEC-3 bearing features deep-groove design races, with Grade 10 balls and full-contact, double-lip, labyrinth (LLU) seals for maximum protection against the elements, while keeping the 90% fill of Almagard extra high pressure grease inside.
This bearing has been used as a suspension pivot bearing by a number of bicycle brands.
The Enduro line of bearings are available in high-carbon chromium steel, 440C stainless steel, ceramic-hybrid and XD-15 with ceramic or stainless balls. Our bearings are always engineered with deepest groove races possible to accommodate the largest balls and feature dual-lip seals that ride in a micro-groove creating a full labyrinth to provide superior protection against the elements.
