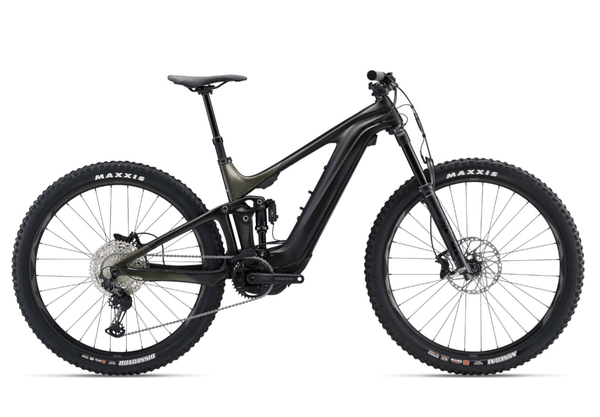

A NEW BREED OF TRAIL BIKE THAT BLENDS POWER, PERFORMANCE AND FLAT-OUT FUN. WITH ITS LIGHTWEIGHT COMPOSITE FRAME, PLUSH SUSPENSION AND NEW MOTOR TECHNOLOGY, YOU’LL NEVER WANT THE RIDE TO END.
KEY PERFORMANCE FACTORS
Powerful and responsive
New SyncDrive Pro motor with 85Nm of torque creates powerful pedaling assistance even at low speeds. Lightweight, stiff Advanced-grade composite frame with 140mm of Maestro rear suspension travel and 150mm up front delivers confident handling and control on rough trails.
Adaptable to the terrain
New flip chip feature lets you change the head tube and seat tube angles, along with the bottom bracket height, to fine-tune handling for varying trail conditions and individual riding style. You can choose the low position for fast, aggressive terrain, or high for a more XC-oriented rider position.
The new RideControl Go top-tube integrated multi-function on/off button and RideControl Ergo 3 handlebar-mounted remote, which can be mounted on either grip, offer user-friendly controls and an uncluttered cockpit design.
Motor: SyncDrive Pro, 85Nm, powered by Yamaha
Controller: RideControl Ergo 3, grip integrated
Display: RideControl GO, frame integrated LED display ANT+ Wireless display compatible
Battery: EnergyPak Smart 625 EnergyPak Plus, 250Wh range extender compatible
Charger: EnergyPak Smart 6A charger
Frame: Advanced-Grade Composite front and rear triangles, 140mm Maestro suspension , flip chip, 12x148mm thru-axle
Fork: Fox 36 Performance Elite Live Valve, 150mm travel, 44mm offset, Grip2 damper, Boost 110x15mm, e-bike integrated
Shock: Fox Float X Performance Elite Live Valve, e-bike integrated
Handlebar: Giant Contact 35 Trail, 35mm
Grips: Giant Tactal Pro-E, single lock-on
Stem: Giant Contact SL 35
Seatpost: Giant Contact Switch dropper, remote
Saddle: Giant Romero
Shifters: Shimano Deore XT
Front Derailleur: MRP HD2 co-moulded chain guide
Rear Derailleur: Shimano Deore XT, 12-speed, Shadow+
Brakes: Shimano Deore, BR-M6120, 4-piston, hydraulic disc, [F] 203mm / [R] 203mm
Brake Levers: Shimano Deore, BL-MT6100
Cassette: Shimano Deore, 10-51T, 12-speed
Chain: KMC e.12 Turbo, EcoProteq, e-bike optimised
Crankset: Praxis Wave 36T Cold Forged 4130 premium steel Praxis e-Cadet+ custom forged crankarm set
Rims: Giant AM 29", Tubeless ready
Hubs: Shimano MT410 Boost, Center-Lock
Tyres: Maxxis Assegai 29x2.6" foldable, Tubeless, EXO, 3c MaxxTerra[F] Maxxis Dissector 29x2.6" Foldable, Tubeless, EXO+, 120tpi 3C [R]
Extras: Tubeless kit (liquid, valves, levers)
Lock: Torx 25 Battery Lock with built-in Torque limiter
